Paasche VL Airbrush & Parts
Paasche VL Airbrush & Parts
Siphon Feed
Double Action - Internal Mix
No other airbrush can offer more versatility. This airbrush has been our best selling airbrush for over 20 years! The VL is used by most of the T-shirt artists in the U.S. It can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users.
Spray Pattern 1/32" - 1"
Light Fluids: India Inks, Dyes, Light Oils, Watercolors, Food Coloring and Fabric Dyes
Recommended Air Pressure:.5 to 1 CFM @ 20 to 45 lbs depending on tip size and fluid being sprayed. Clean, dry air is essential for best results.
Components:
Airbrush, Extra Needle, Metal Color Cup, Extra Tip (in handle), Head Protector Cap, Wrench, Hanger, "22 Airbrush Lessons" Booklet and Parts List and a Storage Case.
 |
Not sure which airbrush to use with which paint? Click here. |
If there are any parts you are looking for and don't see here, please email us. We may be able to order it for you!
Exploded view / Parts list / General Instructions
In Stock
List Price: $149.00
Rex Price:
$85.99
Save 42%!
SKU: PAAVL-SET
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.

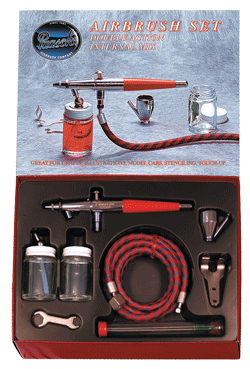

VL-SET Includes:
- VL airbrush with size 3 head, size 1 & 5 heads
- 1 oz bottle assembly
- ¼oz metal cup
- 1oz storage bottle
- 6' braided hose
- hanger
- wrench
- lessons book
Features:
- Airbrush Made In The USA
- Three head sizes for any application
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL-SET |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 1 (.55mm), Size 3 (.74mm), Size 5 (1.05mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
1/32" to 1½" |
| Weight: |
1.1 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $149.00
Rex Price:
$85.99
Save 42%!
In Stock
List Price: $199.00
Rex Price:
$129.99
Save 35%!
SKU: PAAVL-WOOD
No other airbrush can offer more versatility because it can be adapted to use the #1, #3 or #5 needle it can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users. The VL is used by most of the T-shirt artists in the U.S. and has been our best selling airbrush for over 20 years!
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.

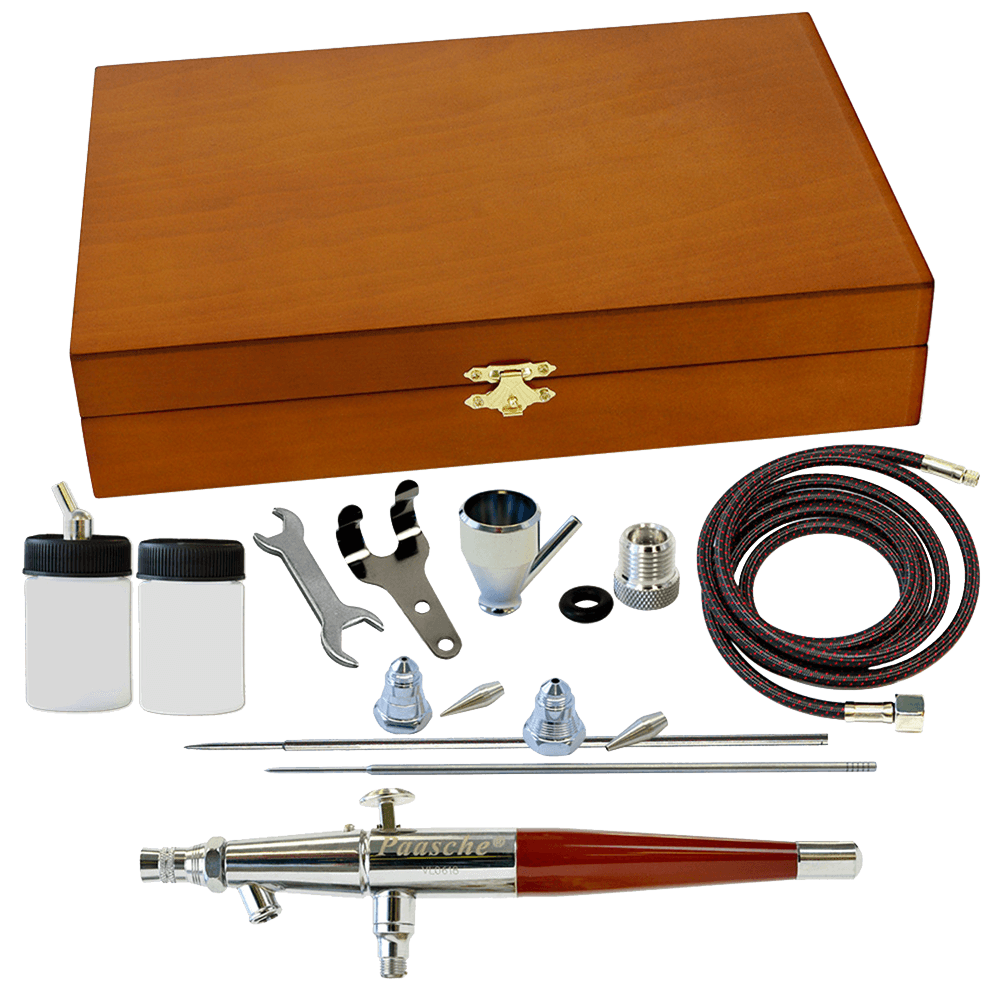

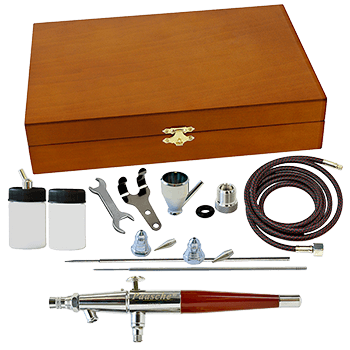

VL-3W Includes:
VL airbrush with size 3 head, size 1 & 5 heads, 1 oz bottle assembly, ¼oz metal cup, 1oz storage bottle, 6' braided hose, hanger, wrench and lessons book, packed in the wood case.
Features:
- Airbrush Made In The USA
- Three head sizes for any application
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL-3W |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 1 (.55mm), Size 3 (.74mm), Size 5 (1.05mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
1/32" to 1½" |
| Weight: |
2.6 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $199.00
Rex Price:
$129.99
Save 35%!
In Stock
List Price: $299.50
Rex Price:
$219.99
Save 27%!
SKU: PAAVL-100D
No other airbrush can offer more versatility because it can be adapted to use the #1, #3 or #5 needle it can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users. The VL is used by most of the T-shirt artists in the U.S. and has been our best selling airbrush for over 20 years!
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.

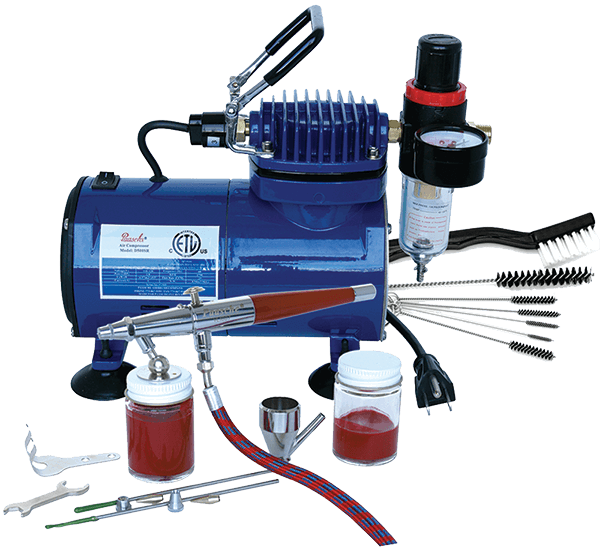

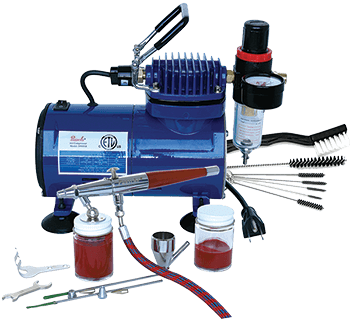

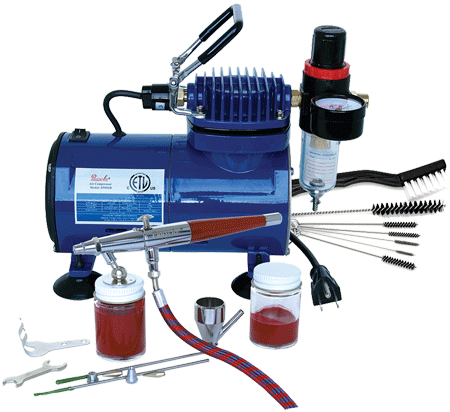

This kit combines the Paasche double action VL-SET, D500SR compressor and AC-7 cleaning kit.
VL airbrush with size 3 head, size 1 & 5 heads, 1 oz bottle assembly, ¼oz metal cup, 1oz storage bottle, 6' braided hose, hanger, wrench and lessons book.
Features:
- Airbrush Made In The USA
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL-100D |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 1 (.55mm), Size 3 (.74mm), Size 5 (1.05mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
1/32" to 1½" |
| Finish: |
Chrome plated body |
The D500SR airbrush compressor is perfect for any hobby or artist airbrush. The maximum operating pressure will be about 35 PSI depending on airbrush being used. The D500SR is light weight, easily mobile and best of all quiet. The auto shutoff feature turn the compressor off when the airbrush is not being triggered to increase compressor life. Included with the compressor is a 1/8BPS adaptor for competitor hoses.
The compressor features include:
- 1/5 HP piston compressor
- Regulator & moisture trap
- Delivers 1-35 PSI depending on airbrush being used
- Standard Paasche ¼NPT hose fitting
- 1/8 BPS hose adaptor for competitor hoses
- Auto shutoff feature
- Carrying handle
- Quiet: noise level is 47 dbs
- Includes 1 year warranty from date of purchase
7 piece airbrush cleaning kit. Can be used to clean any airbrush.
In Stock
List Price: $299.50
Rex Price:
$219.99
Save 27%!
In Stock
List Price: $99.00
Rex Price:
$69.30
Save 30%!
SKU: PAAVL#1
No other airbrush can offer more versatility. This airbrush has been our best selling airbrush for over 20 years! The VL is used by most of the T-shirt artists in the U.S. It can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users.
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.

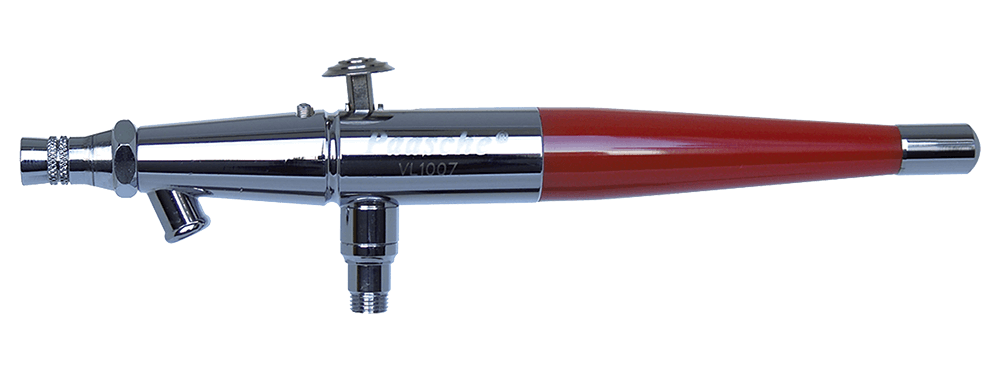

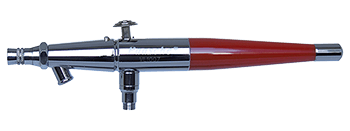

V#1L Includes:
VL airbrush only with size 1 head
Features:
- Airbrush Made In The USA
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL#1L |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 1 (.55mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
3/64" to 1¼" |
| Weight: |
.5 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $99.00
Rex Price:
$69.30
Save 30%!
In Stock
List Price: $98.00
Rex Price:
$68.60
Save 30%!
SKU: PAAVL#3
No other airbrush can offer more versatility. This airbrush has been our best selling airbrush for over 20 years! The VL is used by most of the T-shirt artists in the U.S. It can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users.
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.
V#3L Includes:
VL airbrush only with size 3 head
Features:
- Airbrush Made In The USA
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL#3L |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 3 (.75mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
3/64" to 1¼" |
| Weight: |
.5 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $98.00
Rex Price:
$68.60
Save 30%!
In Stock
List Price: $99.00
Rex Price:
$69.30
Save 30%!
SKU: PAAVL#5
No other airbrush can offer more versatility. This airbrush has been our best selling airbrush for over 20 years! The VL is used by most of the T-shirt artists in the U.S. It can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. Fluids are siphon fed from color cup. This airbrush is suitable for both left and right handed users.
The VL series is Paasche's most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.
V#5 Includes:
VL airbrush only with size 5 head
Features:
- Airbrush Made In The USA
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL#5L |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 5 (1.05mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
3/64" to 1¼" |
| Weight: |
.5 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $99.00
Rex Price:
$69.30
Save 30%!
In Stock
List Price: $113.00
Rex Price:
$79.10
Save 30%!
SKU: PAAVL-CARD
The VL series is our most popular Airbrush due to its durability and ability to spray most material whether thick or thin. The stainless steel needle can handle water based or solvent based mediums. This model can achieve spray patterns from fine detail to broader coverage handling light, to medium materials. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.

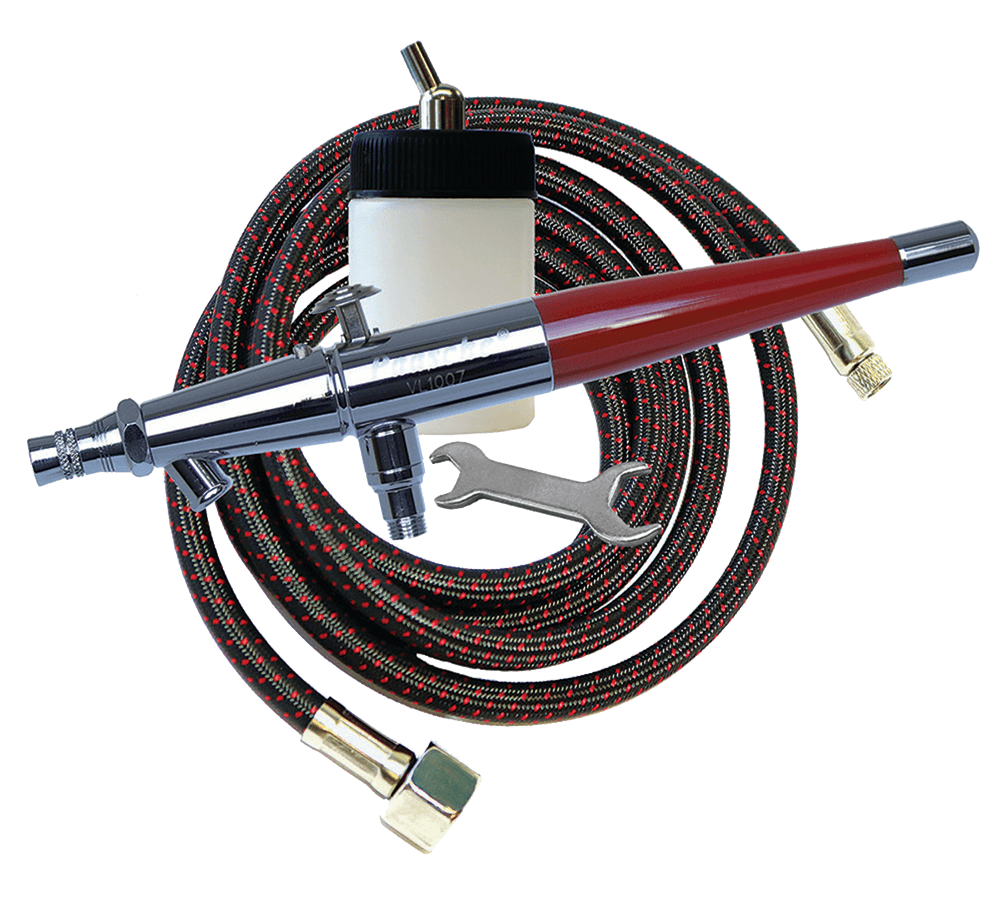

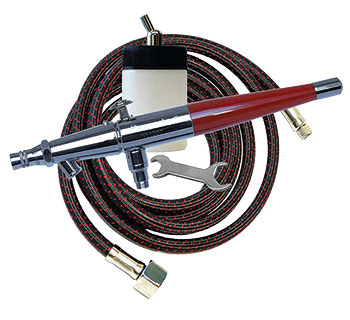

VL-CARD Includes:
VL airbrush with size 3 head, , 1 oz bottle assembly, 6' braided hose, wrench and lessons book.
Features:
- Airbrush Made In The USA
- Highly polished & hardened stainless steel needles for long life and reduced clogging
- Line adjustment screw that can be used to pre-adjust paint flow
- Solvent proof PTFE needle packing allows spraying of water & solvent based paints
- Removable needle protector for fine detail spraying
- Chrome plated body
| Specs: |
|
| Part Number: |
VL-CARD |
| Type: |
Double action, Internal mix, Siphon feed |
| Head Size: |
Size 3 (.74mm) |
| Fluid Packing: |
PTFE - Can spray solvent or water based fluids |
| Air Volume: |
20 PSI @ .5 CFM |
| Air Pressure: |
20-75 PSI |
| Air Inlet: |
Ľ"-20 Thread (Paasche thread) - adapters available |
| Bottle size: |
Ľoz to 8oz bottles available |
| Spray Pattern: |
3/64" to 1¼" |
| Weight: |
.65 lbs |
| Finish: |
Chrome plated body |
In Stock
List Price: $113.00
Rex Price:
$79.10
Save 30%!
Paasche Metal Color Cup for VL/VLS/MIL - Size: 1/4 oz.
SKU: PAAVL-1/4-OZ
In Stock
List Price: $7.95
Rex Price:
$6.36
Save 20%!
Paasche Metal Color Cup for VL/VLS/MIL - Size: 1/4 oz.
SKU: PAAVL-1/4-OZ
In Stock
List Price: $7.95
Rex Price:
$6.36
Save 20%!
Paasche Color Bottle Assembly for VL/MIL - Size: 1 oz.
SKU: PAAVL-1-OZ
In Stock
List Price: $8.95
Rex Price:
$7.16
Save 20%!
Paasche Color Bottle Assembly for VL/MIL - Size: 1 oz.
SKU: PAAVL-1-OZ
In Stock
List Price: $8.95
Rex Price:
$7.16
Save 20%!
Paasche Color Bottle Assembly for VL/MIL - Size: 3 oz.
SKU: PAAVL-3-OZ
In Stock
List Price: $9.60
Rex Price:
$7.68
Save 20%!
Paasche Color Bottle Assembly for VL/MIL - Size: 3 oz.
SKU: PAAVL-3-OZ
In Stock
List Price: $9.60
Rex Price:
$7.68
Save 20%!
Paasche Needle for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLN-1
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Needle for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLN-1
For Paasche VL Airbrushes:
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Needle for VL/VLS/VLST/MIL - Size: 3 (.75mm)
SKU: PAAVLN-3
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Needle for VL/VLS/VLST/MIL - Size: 3 (.75mm)
SKU: PAAVLN-3
For Paasche VL Airbrushes:
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Needle for VL/VLS/VLST - Size: 5 (1.05mm)
SKU: PAAVLN-5
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Needle for VL/VLS/VLST - Size: 5 (1.05mm)
SKU: PAAVLN-5
For Paasche VL Airbrushes:
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Tip for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLT-1
Paasche Tip for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLT-1
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Tip for VL/VLS/VLST/MIL - Size: 3 (.75mm)
SKU: PAAVLT-3
Paasche Tip for VL/VLS/VLST/MIL - Size: 3 (.75mm)
SKU: PAAVLT-3
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Tip for VL/VLS/VLST - Size: 5 (1.05mm)
SKU: PAAVLT-5
Paasche Tip for VL/VLS/VLST - Size: 5 (1.05mm)
SKU: PAAVLT-5
In Stock
List Price: $7.90
Rex Price:
$5.53
Save 30%!
Paasche Aircap for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLA-1
Paasche Aircap for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLA-1
List Price: $7.95
Rex Price:
$6.36
Save 20%!
Paasche Aircap for VL/VLS/MIL - Size: 3 (.75mm)
SKU: PAAVLA-3
Paasche Aircap for VL/VLS/MIL - Size: 3 (.75mm)
SKU: PAAVLA-3
List Price: $7.95
Rex Price:
$6.36
Save 20%!
Paasche Aircap for VL/VLS - Size: 5 (1.05mm)
SKU: PAAVLA-5
Paasche Aircap for VL/VLS - Size: 5 (1.05mm)
SKU: PAAVLA-5
In Stock
List Price: $7.95
Rex Price:
$6.36
Save 20%!
Paasche Air Valve Assembly for VL/VLS/VLST
SKU: PAAVL-176
Paasche Air Valve Assembly for VL/VLS/VLST
SKU: PAAVL-176
List Price: $10.50
Rex Price:
$8.40
Save 20%!
Paasche Finger Lever Assembly for VL/VLS
SKU: PAAVL-174
Paasche Finger Lever Assembly for VL/VLS
SKU: PAAVL-174
List Price: $9.55
Rex Price:
$7.64
Save 20%!
Paasche Multiplehead for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLM-1
Paasche Multiplehead for VL/VLS - Size: 1 (.55mm)
SKU: PAAVLM-1
List Price: $17.50
Rex Price:
$14.00
Save 20%!
Paasche Multiplehead for VL/VLS - Size: 3 (.75mm)
SKU: PAAVLM-3
Paasche Multiplehead for VL/VLS - Size: 3 (.75mm)
SKU: PAAVLM-3
List Price: $17.50
Rex Price:
$14.00
Save 20%!
Paasche Multiplehead for VL/VLS - Size: 5 (1.05mm)
SKU: PAAVLM-5
Paasche Multiplehead for VL/VLS - Size: 5 (1.05mm)
SKU: PAAVLM-5
List Price: $17.50
Rex Price:
$14.00
Save 20%!
Paasche Reamer for VL/VLST/VSR
SKU: PAAVL-54
Paasche Reamer for VL/VLST/VSR
SKU: PAAVL-54
In Stock
List Price: $8.95
Rex Price:
$7.16
Save 20%!
Paasche Plain Jar, Cover & Gasket - Size: 3 oz.
SKU: PAAH-193
In Stock
List Price: $4.60
Rex Price:
$3.68
Save 20%!
Paasche Plain Jar, Cover & Gasket - Size: 3 oz.
SKU: PAAH-193
In Stock
List Price: $4.60
Rex Price:
$3.68
Save 20%!
Paasche Plain Jar, Cover & Gasket - Size: 1 oz.
SKU: PAAH-194
In Stock
List Price: $4.40
Rex Price:
$3.52
Save 20%!
Paasche Plain Jar, Cover & Gasket - Size: 1 oz.
SKU: PAAH-194
In Stock
List Price: $4.40
Rex Price:
$3.52
Save 20%!
Paasche Spring for VL/VLS/VLST/MIL
SKU: PAAVL-140
Paasche Spring for VL/VLS/VLST/MIL
SKU: PAAVL-140
List Price: $3.80
Rex Price:
$3.04
Save 20%!
Paasche Needle Valve Assembly VL/VLS/VLST
SKU: PAAVL-186
Paasche Needle Valve Assembly VL/VLS/VLST
SKU: PAAVL-186
In Stock
List Price: $13.00
Rex Price:
$10.40
Save 20%!
Paasche Line Adjusting Screw
SKU: PAAVL-166
Paasche Line Adjusting Screw
SKU: PAAVL-166
- On Sale! While supplies last!
In Stock
List Price: $2.20
Rex Price:
$1.10
Save 50%!
